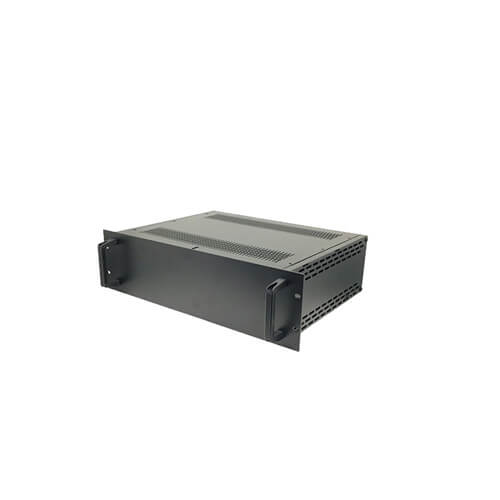

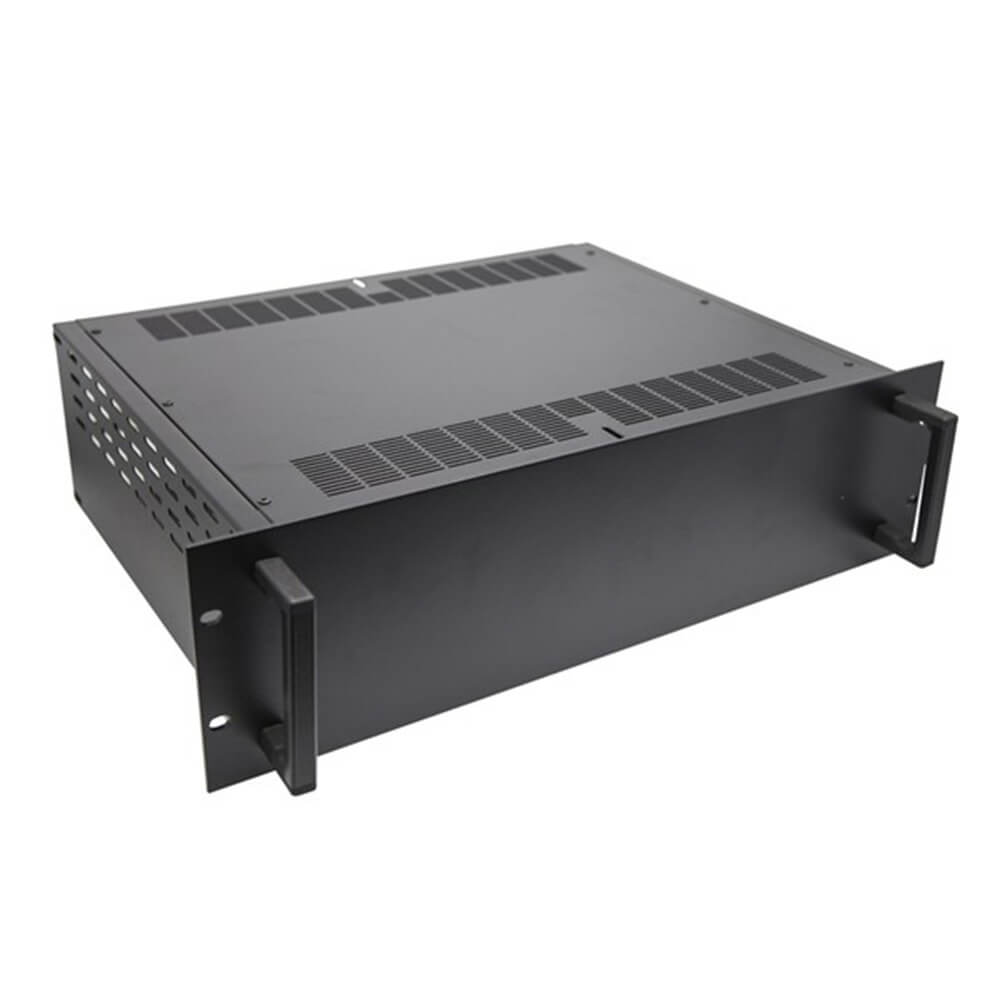

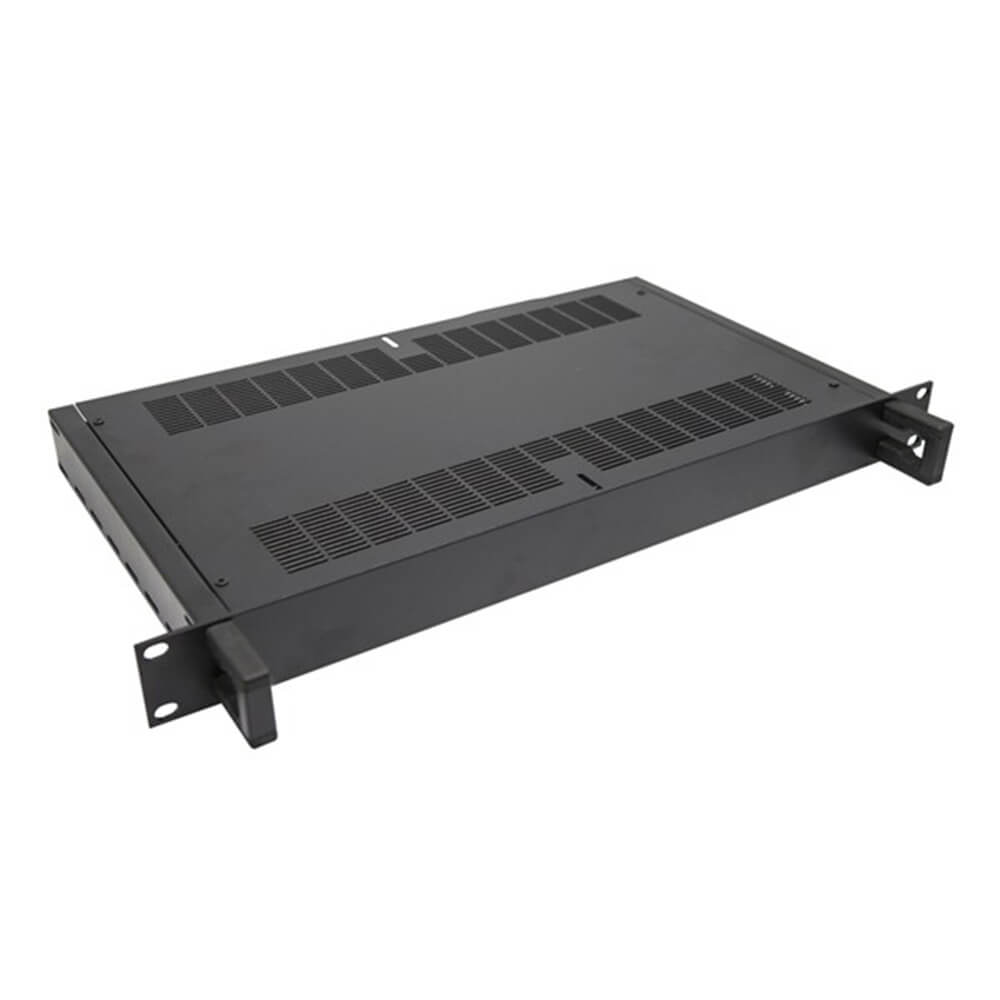

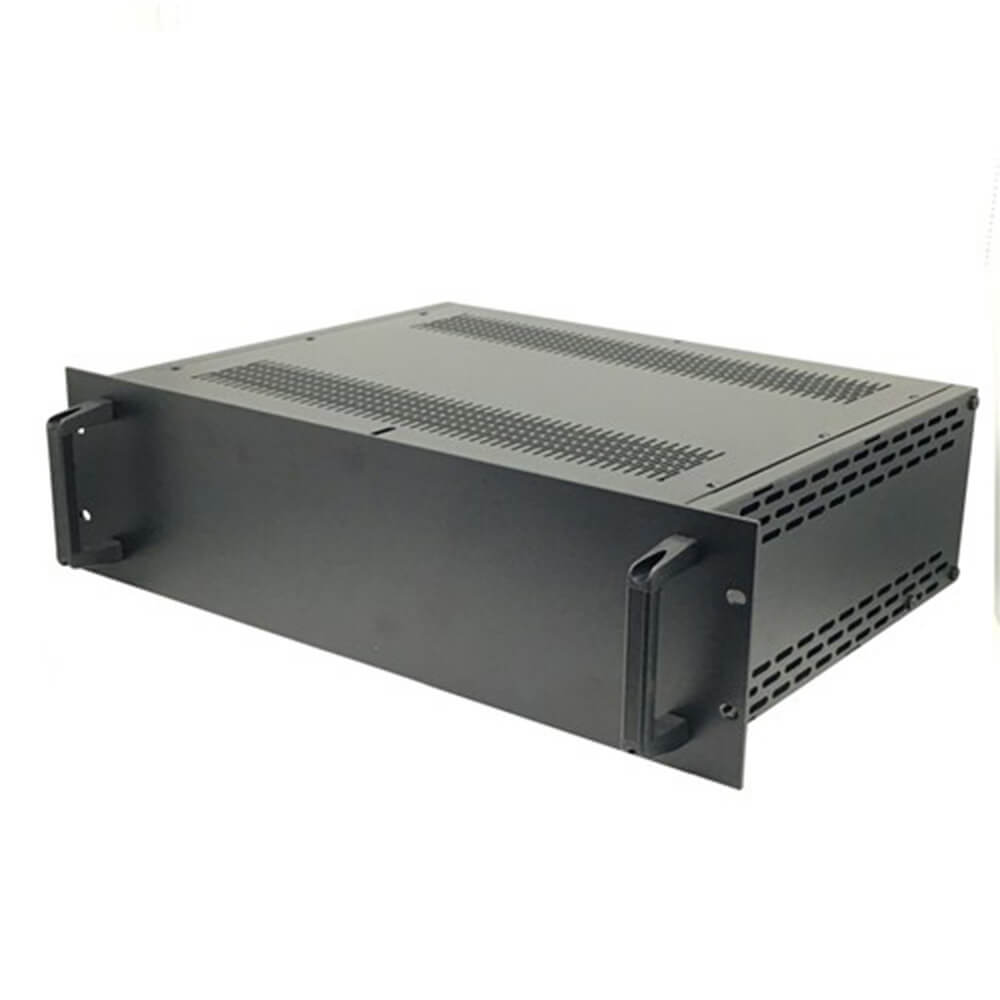

Our range of professional 19inch rack style equipment enclosures are made from premium grade & durable (AL 5052) aluminum. Featuring extensive top/bottom & side/side ventilation, and an inner front panel for component mounting allows outer front panel to remain "clean". It also includes fully adjustable extruded aluminum component mounting bars for flexible component placement.
Features:
Lightweight and durable all-aluminum (AL 5052) construction
Fully adjustable extruded aluminum component mounting bars
All materials are RoHS compliant
Flatpack for efficient storage and shipping
19" rack-mounted or freestanding

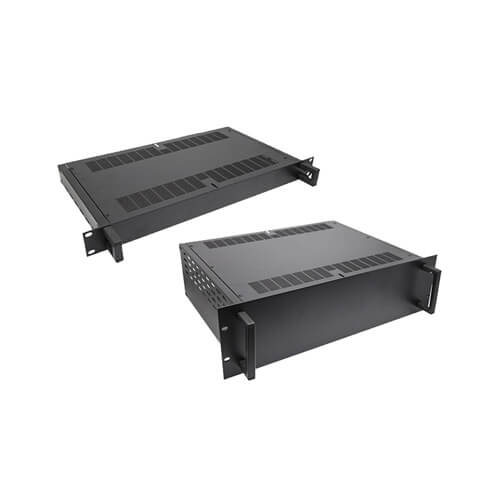

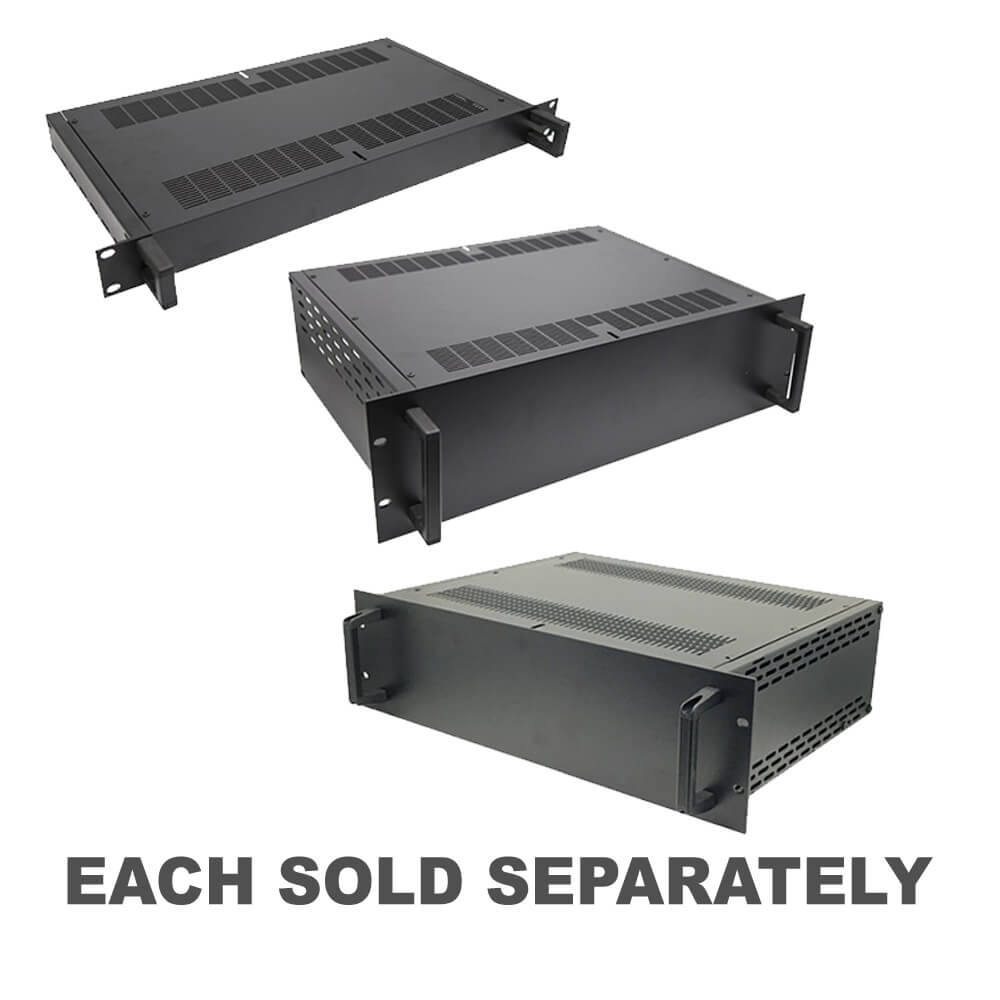

Available in 2U (HB5125) & 3U (HB5130) sizes.
Dimensions conform to IEC-60297-3
Designed and manufactured under ISO 9001:2008 and ISO 14001:2004
Product Specifications
- Colour : Dark Grey
- Width : 482.6mm
- Height : 88.1mm
- Packaged Volume : 8.63l
- Packaged Weight : 2.02kg
- Packaged Length : 49.6cm
- Packaged Width : 35.5cm
- Packaged Height : 4.9cm
- Rack Units : 2pc
- Includes Ventilation Holes? : true
- Width : 482.6mm
- Height : 83.1mm
- Depth : 335mm
- Length : 49.6 cm
- Width : 35.5 cm
- Height : 4.9 cm
